I've found some assembly instructions for a NER E1 here on Bill Bedford's web site . This kit looks to have similar coupling rods to the 57xx so may be able to use these instructions as a guide.
Saturday, 20 June 2009
Thursday, 18 June 2009
My Ultrascale order has arrived : P4 wheel conversion packs for a Bachmann Pannier and a Class 29. Hmmm ........ which one to tackle first.

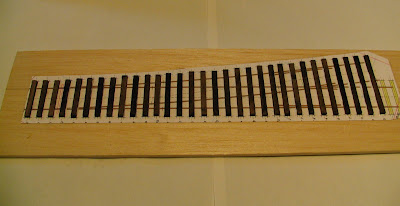

While I am now excited by the thought of quickly having a P4 loco, I am also bathing in the success of the B7 point kit. So this evening I've made a start on the A7 kit but using wooden sleepers.
Templot's sleeper spacing or the length of the point does not match the P4 Track Company's kit. Not sure that this will cause too much of a problem. I hope to be using Templot to build other points and the rest of the track so this should be a good starting point .... sorry about the pun.
More posts will follow along with photographs hopefully in the next few days......
Sorry .... just noticed that posting date for this blog was wrong not sure how I manage to post this before I'd started doing it!! Amended posting date to 18/06/09 (20/06/09).
Tuesday, 16 June 2009
Last night I finally finished my first B7 P4 Track Company point kit. I'm really pleased with the result and the crossing V seems to be OK. Ran a couple of wagons through the crossing V with no problems, nice and smooth. I still feel the V is out of specification but this does show that there are some tolerences within P4. Next test will be a six coupled loco.
I only broke one fishplate and lost one very small part chair component from the switch assembly. I also seemed to be two slide chairs and three S1 chairs short. Replaced most with spares that come on the sprues but had to resort to some C & L S1 chairs to finish the job. There are a few chairs that may need tweaking in the future but at the moment I am just pleased I've got this far.
Next task it to work out how to weather the sleepers to match the wooden ones I'm producing for the plain track. My first attempt is not good need to rethink colours and how to apply the paint. I also need to think about how to operate the point. Tortoise motors seem to be the favoured option and I've purchased a pack of P4 Track Companies base plates. Just need to purchased some motors.
Overall I think these kits are superb and more will be purchased, just a shame that the sleepers are plastic and not wooden.
