Tuesday, 22 October 2013

Tarpaulins (Part 2)

After advice left on my original post I have been continuing with tarpaulin trials for my clay wagons. I must admit that I'd given kitchen foil a quick consideration for tarpaulins but had discounted it as it seemed very flimsy and easily torn. David Smith's comment that kitchen foil might allow planking detail to show though made me have a rethink. Gluing tissue paper to kitchen foil would give it extra stiffness, so I thought it might be worth a try. First attempt, which is on the left of the picture below, was good. I'd not sprayed the foil first so the result is very white, which might not be a bad result considering it's covering a clay wagon...

1st kitchen foil tarpaulins
The one on the right was treated the same as the take-away trays, being  sprayed grey before gluing the tissue paper to the foil. The combination of the thin kitchen foil and tissue paper does allow the tarpaulin to be moulded over and around the wagon stanchions quite well. I these are an improvement on the take-away trays. Many thanks David.

1st attempt at a weathered kitchen foil tarpaulin
The tarpaulin in the above picture was a second plain white (foil not spray painted before tissue paper applied) which I've attempted to weather a little. I've tried to give it a slight green tinge which I don't think has come out that well on the photo. This was to see if I could get away without spraying the foil first. I am reasonably pleased with it and it's a method that would bring more variations in colour for the tarpaulins on my fleet of clay wagons....

The other method that was mentioned was to glue layers of toilet paper together. I did trial this but found it to be too springy. It folded around the wagon reasonably well but the folds were not as sharp as the foil based tarpaulins. I could glued the tissue/toilet paper around a wagon, or even layer the paper on the wagon by wrapping some cling film around the wagon first. This would stop the glue from damaging the wagon, and also allowed the tarpaulin to be removed for painting. BUT I think I'd already been sold on the kitchen foil method as my thoughts were wandering further ahead...

There are many printed paper tarpaulins available, all are supplied with text/numbers printed white on black. In attempts to crumple these and apply to wagons I've never been overly satisfied with the result. Unlike some modellers my skills have not been adequate to hide the fact that they are crumpled paper. So while working on the tarpaulins for my clay wagons my thoughts had been drifting to how I might apply text to these foil based tarpaulins for use on general merchandise wagons.

1st attempted at a printed tarpaulin
A foil sheet, with tissue paper applied, was carefully tacked with sellotape to a sheet of A4 paper. A couple of the pre-printed tarpaulin sheets where scanned in to the computer then printed onto the foil tarpaulin sheet.  Unfortunately I'd decided not to pre-spray the foil before applying the tissue paper which showed as the finish has a slight shiny sheen. Next attempt was to spray the foil before gluing on the tissue paper.

2nd attempt at a printed tarpaulin
Well, it came out sort of OK... the white lettering is looking dirty with the fine lettering very faded. I am a little unsure of the result as it was not quite what I was expecting. It might look better in the morning. I may go back to the previous printed tarpaulin and try lightly weathering it. A mix of grey-green-black paint dry brushed over the tarpaulin might help to hide the slight shiny sheen. Then I can compare the two.

Overall I'm feeling these tarpaulins are a reasonable success. No doubt a few more trials and rejects to come but the basics are there...I must now get back to building more clay wagons along with getting one of my 08s converted to bring a little authenticity to the layout.


Friday, 18 October 2013

The Garage (The Modelling Room)

As mentioned in a previous post I've been trying to spend time working on converting my garage into a comfortable modelling room. When I discussed my proposal with a builder friend he suggested that I consider using foam (SilverSill Foam) to glue the insulation to the walls and the same foam to glue plasterboard to the insulation. This seemed a very foreign method and, while I was installing extra roofing joists and wiring for new light and ring main, questions that kept running though my head were:
  1. What if, in the future, I wanting to hang shelves on the walls?
  2. How strong would the bond be to the wall?
  3. Would damp coming through the walls affect the adhesion of the foam?
  4. I was thinking of using 100mm thick insulation for the walls but, because of pillars in the garage, would like to have an air gap between the insulation and wall of about 40mm. Would using foam as glue have a negative affect on this air gap?
All these questions kept haunting me. Irrespective of the follow up conversations and a practical demonstration (in which the foam did glue plasterboard to a mucky piece of timber like 'shit to a blanket') I was never convinced that it was the correct method for me to use. In consulting a different builder friend, while he did not dismiss the method as being outlandish nor incorrect, he thought that a traditional method for lining the walls would be more suitable. So a 100mm x 47mm timber stud frame was discussed as the way forward. Now I can get my head around that...

Part of the garage is beneath ground level. Even though the garage does seem very dry, I've applied Tanking Slurry to these walls to stop water penetration.

Tanking Slurry applied

As I didn't know what I was buying nor how it needed to be applied I only purchased a 20kg bag, which covered about half the the wall area I needed to treat. The best way to describe the solution is as a cement slurry, mixed so that a 4" brush will stand upright in the bucket and applied as thick as possible to the walls. Easy peasy...another bag has been ordered...

First timber frame

While waiting for the extra bag of Tanking Slurry to arrive, I knocked together the first frame. This will have a damp course membrane between the floor and timber floor plate, as well as a vapour barrier stapled to the back between the outside wall and the frame. Installing 100mm Celotex insulation within the frame, should make it a warm, dry room...

Sunday, 13 October 2013

Buckets

A while ago I'd read a post on the Albion Yard blog about buckets so went ahead and purchased some etches thinking they would come in very useful. For some reason this evening, after a good day working in the garage, I thought I needed a little challenge and set about soldering one of the buckets together. Jumping in at the deep end I ignored the straight sided bucket and went for the, potentially more difficult, slope-sided example.

Surprisingly it was not too difficult. The handle was the hardest part but after summoning a bucket full of 'patience' I eventually had something that would 'hold water'!


For my first attempt at soldering something so small I'm well pleased... I've just started painting the 1/76 scale chap in the picture but thought including him might help with getting the comparative scale of the 1/72 bucket. The etch is in the background.

For more information go to Brengun where, on page four of their 1/72 accessories section, you should find the buckets along with a good looking tool set. On page three, of this section of their e-shop, there is also a very nice looking bike etch.

I have no connection with Brengun apart from being a very satisfied customer.

Sunday, 6 October 2013

Tarpaulins


Just like buses, you wait for ages then three arrive together....but at last a little bit of modelling…

I've been experimenting with a few different materials to create tarpaulins for my clay wagons.

One attempt was using some black cloth which still looked like black cloth when wrapped around the wagon. Even after weathering the cloth weave was too large and it just looked wrong.

I do remember, from way back, that people used to use toothpaste tubes for tarpaulin covers. As toothpaste tubes are now plastic my thoughts turned to using aluminium takeaway trays. A couple were acquired, contents used (very tasty)... the trays were then washed and flattened. I've collected a few photographs of the early WR/BR clay wagons with tarpaulin covers and started to attempt to replicate them. A few trial shapes were cut out of the trays and wrapped around a wagon. Once happy with the shape a template was cut and more produced.  A couple were then folded around a wagon, removed and sprayed black. Unfortunately I was not totally happy with the result. The paint easily rubbed off which was a worry. Even after a little weathering being applied they still looked, to me anyway, as aluminium sprayed black with a little weathering.

At an area group meeting tarpaulins were discussed and toothpaste tubes also mentioned. Then at the next meeting I was kindly presented with a tomato puree tube. In the mean time I'd also spied a part used Mushroom Pate tube in our fridge which was quickly finished. These were both cut open, cleaned and sprayed, one black and one grey. These are made from a thicker material than the takeaway trays and being printed they took paint better. But I was disappointed in the thickness of the material, making it difficult to fashion around a wagon and they really just looked too thick when on the wagon. I was starting to get a little disappointed with my efforts so the project had been put on one side for a couple of weeks.

While wandering around Scaleforum I came across issue 70 of the  DEMU Update magazine being offered for free.  I picked a copy up and shoved it in my bag, thinking I'd have a look at it later. In the car on the way home the magazine was quickly thumbed through. I was surprised to find an article on creating tarpaulins for the Bachmann clay hoods by Jon Baulch in which he describes using masking tape for the tarpaulin. This prompted a conversation on the journey home and we got around to discussing applying tissue paper to van roofs to allow the roof boarding to show through. Cue 'blinding flash of light'... I thought what about applying tissue paper to my takeaway tray tarpaulins…would this give me the texture I was after...?

Tarpaulins on the GWR Dia 013 clay wagons

The above photo shows one takeaway tray tarpaulin sprayed grey the other black. Both had thin tissue paper glued on to them using a wash of PVA glue. When dry they where refolded around the wagons. As yet no additional paint or weathering has been applied. To my eyes the result is starting to look good…

A little more playing around, possibly with adding some ropes Might also try a little dry brushing with an off white greyish colour. Anyway I'm feeling progress is being made, could be nearly there...

Friday, 4 October 2013

Scaleforum 2013

Not another posting on a model railway show, it's about time this chap got some modelling done, I hear you say.... BUT what a great weekend last weekend was.

A new venue for this show and having never ventured down to Railex this was my first visit to the Aylesbury sports hall. Luckily I travelled with someone who had, so finding the venue and car parking was no issue. A new venue does bring with it a level of trepidation, a break with familiarity, which was all unfounded. No doubt there were some niggles that will always occur when putting on a show at a new venue but none affected my enjoyment of the weekend.

With all traders and exhibits in one hall, plenty of space to mingle it made the two days far less tiring than when it was at Leatherhead. With a good mix of layouts and demonstrations (again with plenty of room around the demos, unlike Leatherhead) with members willing to give advice on many aspects of the hobby I probably found this to be the best of the five Scaleforums that I've been able to attend.

Stage left

Stage right
There were eleven fine layouts on show, all inspirational with much to take in. Blackgill, Halifax King Cross and Alt-y-Graban Road were the three that gained my main attention.

Blackgill
Blackgill
Blackgill
Halifax King Cross
Halifax King Cross
Halifax King Cross
Allt-y-Graban Road
Allt-y-Graban Road
A few photos of some of the other exhibits..

Dubbieside

Nottingham Goods

Simington

Simington

Stoke-by-Nayland

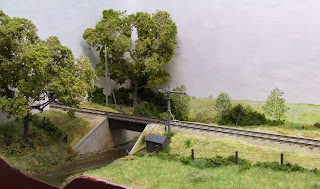

The guest layout was Obbekaer, an essay in P87 of a fictitious location in Denmark. I found this to be a very attractive layout.

Obbekaer

Obbekaer

Obbekaer

Did I spend any money? Well I didn't purchase all that was on my shopping list. As I walked around the show I kept thinking I must start some serious modelling, finish some kits and crack on with Tredethy Wharf. I have plenty of projects in stock without adding to them. So enough was purchased to keep me going through the winter. Roll on Scalefour North...Oh along with Gordon Gravett's new publication on grassland and landscape modelling.

Above all what I enjoy about all Scalefour Society shows is the exhibitors willingness to chat and discuss elements of their models, as well as inspire and encourage. This gives every show a friendly atmosphere which I feel the Society achieved more than ever this year. So may I take this opportunity to thank all those involved, with organizing, demonstrating, exhibiting and trading.

Would I go again?..Definitely, in fact my room is already booked for next year...

Tuesday, 1 October 2013

Model Rail Live 2013

Just playing catch up...rolling back time by about 10 days.

Winterschalf Bob suggested we went to this show but I was not sure what to expect. At first I was not overly bothered about going as it was the week before Scaleforum. Once I'd seen that Albion Yard, Diesels in the Duchy, and Chris Nevard's Polbrook Gurney Colliery were there and it was only down the road at Newark, I thought I might as well tag along. I've been following these three layouts via blogs and RMweb postings for some time but not seen any of them in the flesh.

Of the three layouts Polbrook Gurney Colliery was the first of the three to be seen. 'Beautiful' is all I can say. Didn't see much running but then it was well presented with an excellent tone of colour and, for such a small model, plenty to take in just standing and looking.


Polbrock Gurney Colliery

Polbrock Gurney Colliery

Polbrock Gurney Colliery

Polbrock Gurney Colliery

Polbrock Gurney Colliery

Second of the three to be seen was Diesels in the Duchy. I must admit that while I was impressed with the standard of the modelling I still came away a little disappointed. Was this because I've seen many excellent photos and comments on-line that had built up my expectation too high or was it just my bad luck that each time I when back to view the layout it just so happened that there were running problems? Must have caught them at the wrong moments which is a shame as this was one layout I was really looking forward to seeing and watching. With all that said it as a fine piece of modelling so I'll have to try and get to see it again sometime.


Diesels in the Duchy

Diesels in the Duchy

I had no preconceived ideas about Albion Yard and I was really impressed. I liked the concept of a very high layout with a part scenic hidden sidings giving an impression of more layout beyond. There was movement on the layout each time I ventured back to it with good conversations with the operator. Shame I'll not be able to see this layout again as it is being retired.

Albion Yard (looking towards the hidden sidings)

Albion Yard (hidden sidings)

Albion Yard

To name a couple of other layouts that I've seen before but really enjoyed seeing again were:


Dewsbury Midland

Dewsbury Midland

Dewsbury Midland

and


Harton Gill

Harton Gill

Harton Gill

In the small demonstration area I managed to have a good chat with David Wright who has help me a little with my negativity towards scratch building buildings. I was also able to watch over the shoulders of the many who were crowded around Gordon Gravett's demo of landscape modelling.

As this was the week before Scaleforum purchases were kept to a bare minimum, I only bought a few items for wagon loads from Langley Miniatures.

There were plenty of other good layouts on show, so overall it was an enjoyable day. Was it worth the £10.00 entrance fee for one day? Hmmm possibly only just...more importantly would I go next year... not sure... depends on what's there.
